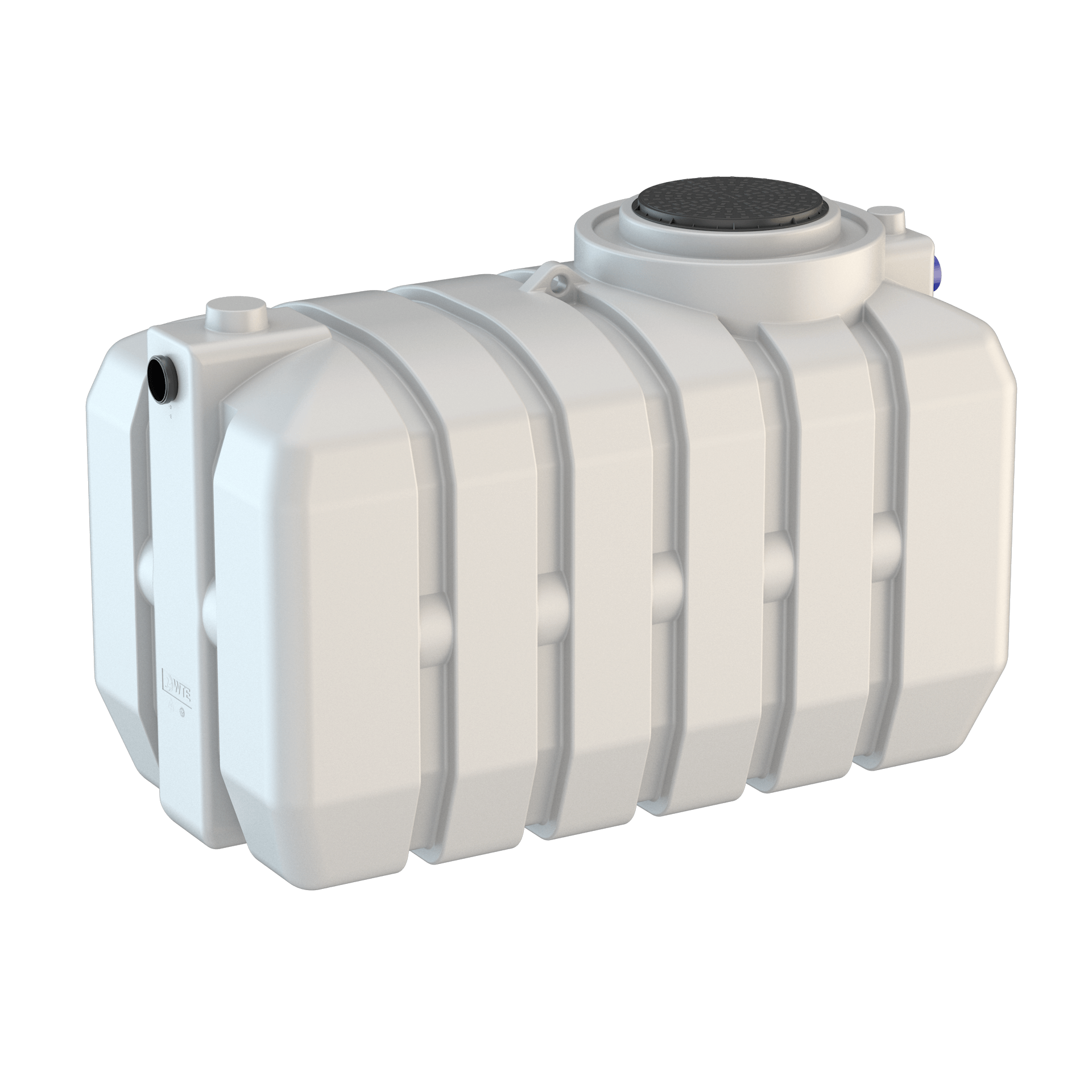

WTE EPIC 6 Person Shallow Dig Septic Tank - 3100 Litre

from £900.00

Manufactured by WTE, EPIC is a 3100 litre Septic Tank suitable for properties with four bedrooms or six full time residents. EPIC Tanks are compact and lightweight making installation simple. Every EPIC Septic Tank is also fitted with a WTE Drain-X effluent filter to significantly reduce particles leaving the tank and blocking up the drainage field.

EPIC tanks are designed for dry sites (no groundwater). Please see installation manual for more details. Failure to install correctly will invalidate any warranty.

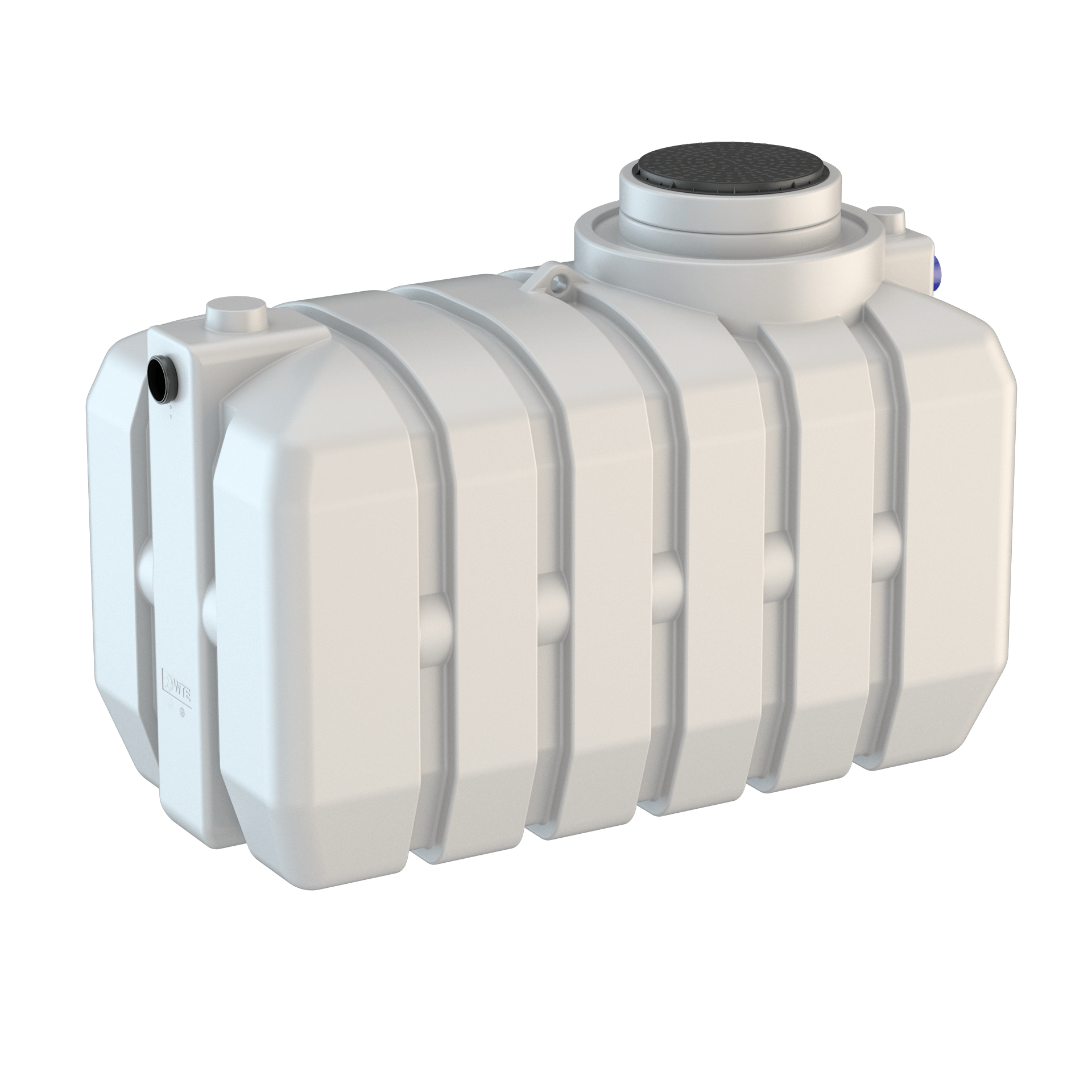

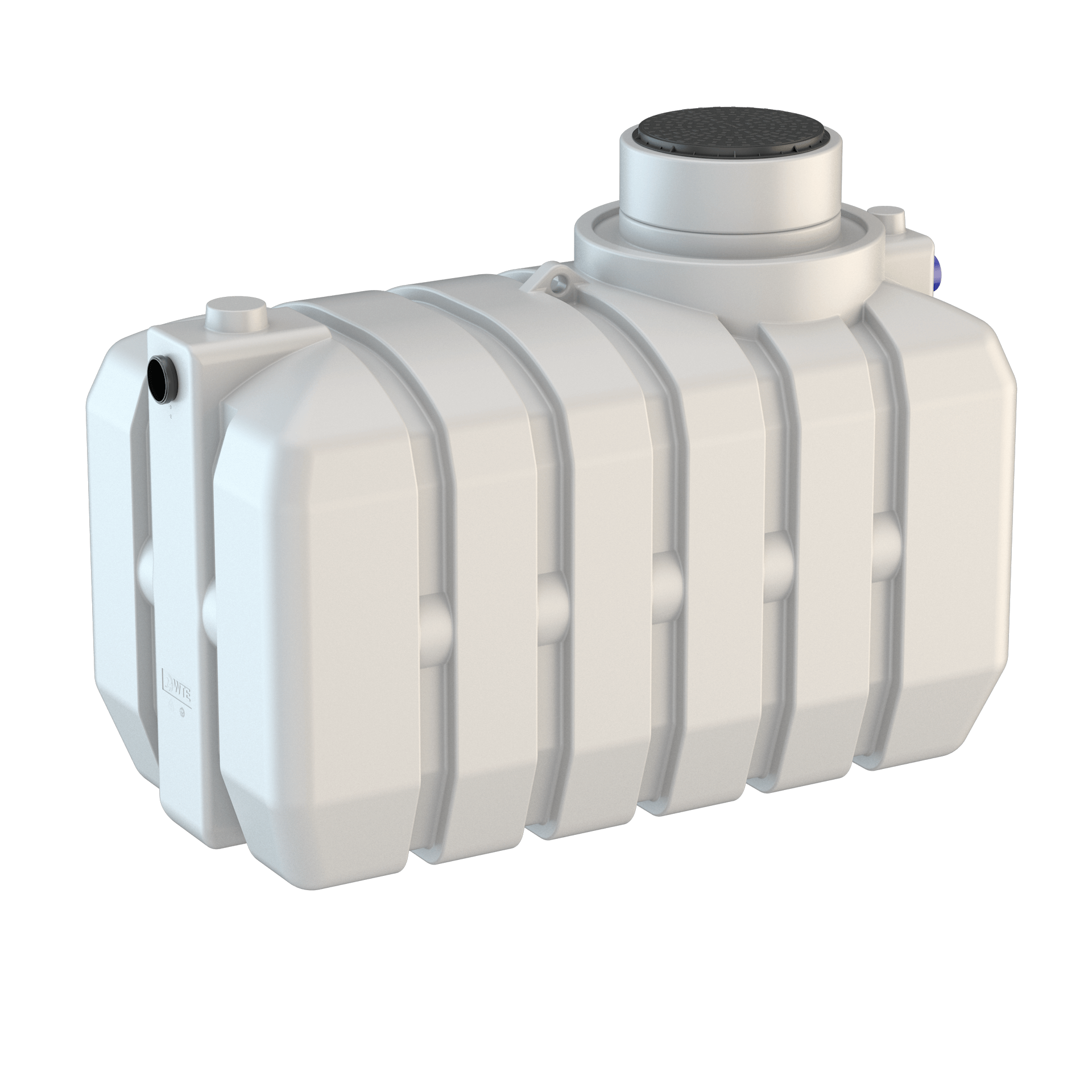

The standard invert for this tank is 325mm. EPIC Septic Tanks can be ordered with 100mm and 200mm Extension Turrets for sites with deeper drainage pipes.

Key features

  • Zero power required

  • Installation of EPIC Septic Tanks is very simple due to the low profile design. This reduces the excavation depth considerably compared to most other Septic Tanks.

  • Fitted with a Drain-X Filter as standard - to prolong the life of the drainage field by trapping physical deposits and preventing them leaving the tank and blocking up the drainage field.

  • 100% recyclable HDPE (polyethylene) tank

  • Small, discreet access cover

  • One piece moulded construction - no leaking seals

  • Compact size enables economic installation in tight spaces

  • Tested to EN 12566-3

How the EPIC Septic Tank Works

  1. Wastewater from the building enters the EPIC Septic Tank via the 110mm inlet pipe connection.

  2. Solids are separated from water inside the EPIC septic tank by gravity. Heavy solids sink to the bottom of the tank and oils and fats rise to the surface.

  3. The water inside the tank is filtered through a Drain-X effluent filter before flowing out of the tank and into the drainage field through the 110mm outlet pipe.

Inlet Invert:

Manufactured by WTE, EPIC is a 3100 litre Septic Tank suitable for properties with four bedrooms or six full time residents. EPIC Tanks are compact and lightweight making installation simple. Every EPIC Septic Tank is also fitted with a WTE Drain-X effluent filter to significantly reduce particles leaving the tank and blocking up the drainage field.

EPIC tanks are designed for dry sites (no groundwater). Please see installation manual for more details. Failure to install correctly will invalidate any warranty.

The standard invert for this tank is 325mm. EPIC Septic Tanks can be ordered with 100mm and 200mm Extension Turrets for sites with deeper drainage pipes.

Key features

  • Zero power required

  • Installation of EPIC Septic Tanks is very simple due to the low profile design. This reduces the excavation depth considerably compared to most other Septic Tanks.

  • Fitted with a Drain-X Filter as standard - to prolong the life of the drainage field by trapping physical deposits and preventing them leaving the tank and blocking up the drainage field.

  • 100% recyclable HDPE (polyethylene) tank

  • Small, discreet access cover

  • One piece moulded construction - no leaking seals

  • Compact size enables economic installation in tight spaces

  • Tested to EN 12566-3

How the EPIC Septic Tank Works

  1. Wastewater from the building enters the EPIC Septic Tank via the 110mm inlet pipe connection.

  2. Solids are separated from water inside the EPIC septic tank by gravity. Heavy solids sink to the bottom of the tank and oils and fats rise to the surface.

  3. The water inside the tank is filtered through a Drain-X effluent filter before flowing out of the tank and into the drainage field through the 110mm outlet pipe.

Product Specifications

EPIC 6

Volume (L): 3100

PE: 6

Width (mm): 1220

Height (mm): 1575

Length (mm): 2320

Base to inlet (mm): 1250

Base to outlet (mm): 1225

Standard inlet invert (mm): 325

Outlet invert (mm): 350

Download specification (Standard)

Download specification 425mm inlet

Download specification 525mm inlet

Brochure
Installation Manual
