Marsh SUMP2DRAIN Surface Water Pump Station 190L - 590L

from £550.00

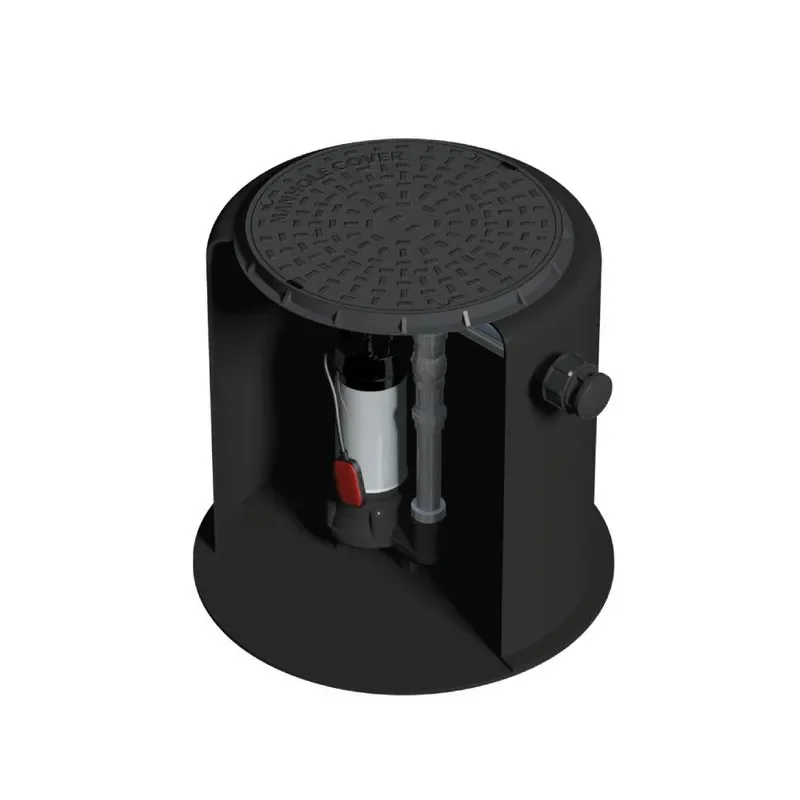

Marsh SUMP2DRAIN pump stations provide a reliable and compact solution where gravity drainage is not possible. These packaged systems collect wastewater in an underground chamber and automatically pump it to the mains sewer, septic tank, or treatment plant.

Supplied as a complete, ready-to-install package, each pump station includes the pump, internal pipework, and chamber. For additional protection, a high-level alarm is available as an optional extra. All systems comply with BSEN 752-6 standards, ensuring dependable performance and peace of mind.

Surface Water/ Effluent (‘S’ Models)
Suitable for surface water, ground water, and effluent. The Marsh190S model can also handle grey water from showers and wash basins (not suitable for W.C. waste).

Key Features

  • Manufactured from high-grade MDPE

  • Small and compact for easy installation with Unique ‘keying-in’ lip assists anchoring in concrete.

  • Removes grey water from final effluent in sewage treatment plants, drains, cellars and basements, and handles sinks, showers, kitchens and dishwashers. Not suitable for W.C waste.

  • Provides up to 24-hour pumping capability and meets BSEN 752-6 compliance standards.

  • Option of 6m or 10 lift pumps

  • Comes with heavy duty MDPE connector

  • Fitted with pedestrian access cover

Size:
Pump Head/Lift:

Marsh SUMP2DRAIN pump stations provide a reliable and compact solution where gravity drainage is not possible. These packaged systems collect wastewater in an underground chamber and automatically pump it to the mains sewer, septic tank, or treatment plant.

Supplied as a complete, ready-to-install package, each pump station includes the pump, internal pipework, and chamber. For additional protection, a high-level alarm is available as an optional extra. All systems comply with BSEN 752-6 standards, ensuring dependable performance and peace of mind.

Surface Water/ Effluent (‘S’ Models)
Suitable for surface water, ground water, and effluent. The Marsh190S model can also handle grey water from showers and wash basins (not suitable for W.C. waste).

Key Features

  • Manufactured from high-grade MDPE

  • Small and compact for easy installation with Unique ‘keying-in’ lip assists anchoring in concrete.

  • Removes grey water from final effluent in sewage treatment plants, drains, cellars and basements, and handles sinks, showers, kitchens and dishwashers. Not suitable for W.C waste.

  • Provides up to 24-hour pumping capability and meets BSEN 752-6 compliance standards.

  • Option of 6m or 10 lift pumps

  • Comes with heavy duty MDPE connector

  • Fitted with pedestrian access cover

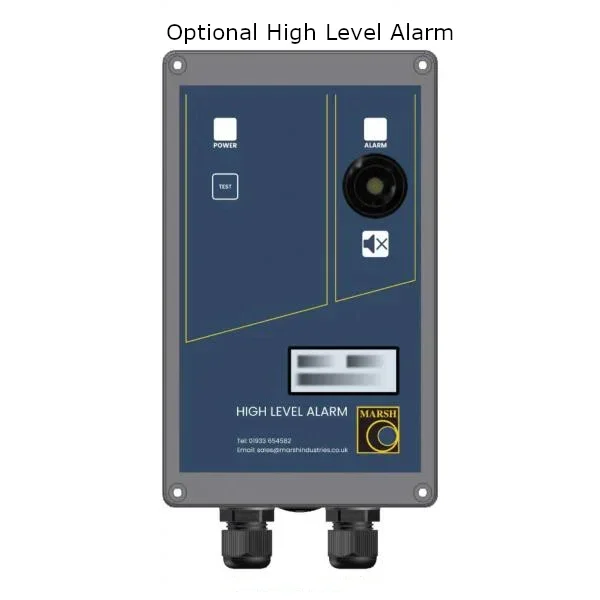

Marsh SUMP2DRAIN High Level Alarm
Marsh SUMP2DRAIN High Level Alarm
£178.00

Product Specifications

Size: 190 litre

Pump (head): 6m or 10m

Diameter (+/-50mm): 600

Depth +/-50mm): 600

Storage (litres): 190

Outlet (MDPE Ø mm): 32/50

Power (kw): 0.25 or (0.55 for 10m pump head)

Download Specification

Size: 300 litre

Pump (head): 6m or 10m

Diameter (+/-50mm): 600

Depth +/-50mm): 1000

Storage (litres): 300

Outlet (MDPE Ø mm): 32/50

Power (kw): 0.25 or (0.55 for 10m pump head)

Download Specification

Size: 440 litre

Pump (head): 6m or 10m

Diameter (+/-50mm): 600

Depth +/-50mm): 1500

Storage (litres): 440

Outlet (MDPE Ø mm): 32/50

Power (kw): 0.25 or (0.55 for 10m pump head)

Download Specification

Size: 590 litre

Pump (head): 2280

Diameter (+/-50mm): 600

Depth +/-50mm): 2000

Storage (litres): 590

Outlet (MDPE Ø mm): 32/50

Power (kw): 0.25 or (0.55 for 10m pump head)

Download Specification


Installation Manual
